Steel Tube Single Mode 1550nm Fused Fiber Coupler

  • 1
  • 2

Brand Name : SUNET / OEM

Model Number : Steel Tube Type

Certification : ISO9001 / ISO14001

Place of Origin : Qingdao , China

MOQ : 1 pc

Price : USD 1.3 - 3 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 PCS / Month

Delivery Time : 5 - 8 Workdays

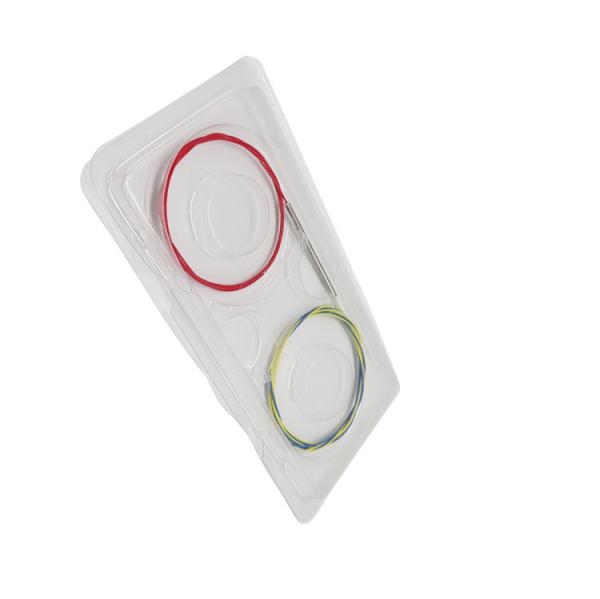

Packaging Details : Blister box packing

Product name : 1X2 Fiber Optic FBT Coupler

Splitter Type : Steel Tube Type

Jacket Material : PVC / LSZH

Wavelength : 1310 / 1490 / 1550nm

Operating Temperature : -40-+85

Fiber type : G652D / G657A1 / G657A2

Warranty : 1 Years

Specification : Single mode

Length : 1M, 2M, customers requirement

Contact Now

1X2 Steel Tube Type 1310 / 1490 / 1550nm Fiber Optic FBT Coupler

FBT Coupler Description

Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape Technology.

It features small size, high reliability ,cheap cost and good channel-to-channel uniformity,and is widely used in PON networks to realize optical signal power splitting.

SUNET provides whole series of 1xN and 2xN spliiter products that are tailored for specific applications .All products meet GR-1209-CORE and GR-1221-CORE.

The single mode standard coupler features low excess loss, high stability and reliability. It is built by asymmetric coupling technique. The operating bandwidth of this normal coupler is expanding to ±40nm, and the ultra broadband coupler is expanding to ±80nm. The DWC has the same coupling ratio on both 1310nm and 1550nm communication windows, and with low excess loss and low PDL. DWC are widely used for communication systems, fiber optic cable coupler CATV, and FTTH.

FBT Coupler Feature

1. Low Excess loss

2. Low PDL

3. Environmentally stable

4. Good Thermal Stability

FBT Coupler Application

1. Long-haul Telecommunications

2. CATV Systems & Fiber Optic Sensors

3. Local Area Network

FBT Coupler Specification

Parameters

Specification

Channel Number

1x2 or2x2

Operating Wavelength (nm)

1310,1550,1310/1550,1310/1550/1490

Operating Bandwidth(nm)

±40

Coupling Ratio

Coupling Ratio Insertion Loss (dB)

P Grade

A Grade

50/50

≤3.3

≤3.5

40/60

≤4.5/2.6

≤4.7/2.8

30/70

≤5.7/1.9

≤5.9/2.1

20/80

≤7.6/1.3

≤7.75/1.38

10/90

≤10.85/0.68

≤11.2/0.75

5/95

≤14.4/0.45

≤15.5/0.48

2/98

≤18.5/0.6

≤19.8/0.38

1/99

≤21.8/0.28

≤22.8/0.35

PDL(dB)

≤0.15

≤0.2

Directivity(dB)

≥50

Return Loss

≥55

(1xN)

N=3

N=4

N=5

N=8

N=16

N=24

N=32

N=64

Fiber Type

Corning SMF-28e

IL (MAX) (dB)

5.41/5.62

7.01/7.22

7.81/8.02

10.01/10.42

13.51/13.92

15.01/15.42

17.31/17.52

21.01/21.52

Uniformity (dB)

0.51/0.62

0.51/0.62

0.61/0.82

0.81/1.02

1.11/1.32

1.21/1.52

1.31/1.52

2.11/2.52

Return Loss (dB)

≥55

Directivity (dB)

≥50

PDL (dB)

< 0.20

< 0.20

< 0.30

< 0.30

< 0.40

< 0.50

< 0.50

< 0.20

Steel Tube Single Mode 1550nm Fused Fiber Coupler
