50dB OEM Rack Mount 0.5m Fiber Optic PLC Splitter

Product Categories
Qingdao Sunet Technologies Co., Ltd.
Contact Now

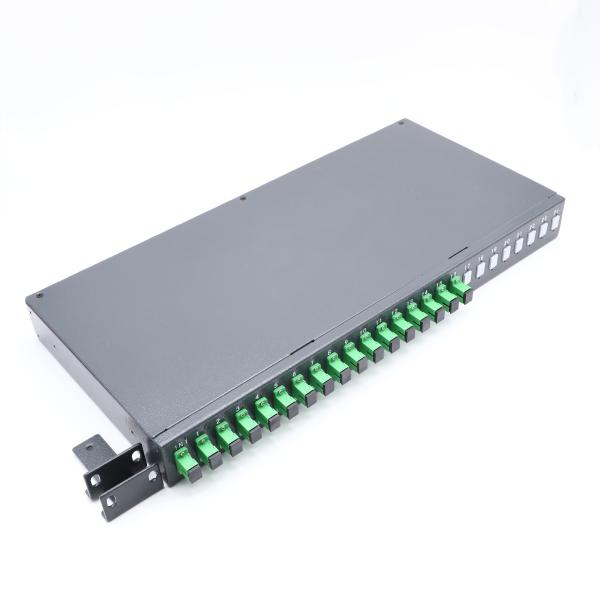

50dB OEM Rack Mount 0.5m Fiber Optic PLC Splitter

Brand Name : SUNET/OEM

Model Number : SUNET01

Certification : ISO9001

Place of Origin : Qingdao China

MOQ : 1

Price : USD 3.5-30PER PCS

Payment Terms : T/T, D/A, D/P, , L/C, Western Union, MoneyGram

Delivery Time : 5-8 work days

Packaging Details : Carton

Supply Ability : 500000 pcs per month

Type : rackmount type

Application : FTTH FTTB FTTX PON CATV

Length : 0.5m/1m

Color : Grey/Black

Connector type : SC/APC

Item : high quality plc splitters fiber spliter

Return loss : ≥50 dB

Warranty : 3 years

Contact Now

1*16 Sc Apc Rack Mount Type Fiber Optic Plc Splitter

Plc Splitter Description

1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).All products meet GR-1209-CORE and GR-1221-CORE requirements.

Plc Splitter Feature

1.Low Insertion Loss
2.Low Polarization Dependent Loss
3.Wide Operation Wavelength
4.Wide Operation Temperature
5.High Stability and Reliability

Plc Splitter Application

1.Access Network
2.Telecom/CATV
3.Active device termination
4.Local Area Networks (LANS)
5.Metro
6.Test equipment
7.Data processing network
8.Wide Area Networks (WANS)
9.FTTX

Plc Splitter Specifications

Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x4 1x8 1x16 2x4 2x8 2x16 1x32 2x32 1x64
Insertion Loss (dB) Max. * <7.3 <10.5 <13.5 <7.6 <11.2 <14.5 <16.2 <18.2 <20.5
Uniformity (dB) Max.* <0.8 <1.0 <1.5 <1.0 <1.5 <2.0 <2.0 <2.5 <2.5
PDL(dB)Max.* <0.2 <0.2 <0.3 <0.3 <0.3 <0.4 <0.3 <0.4 <0.3
Directivity (dB) ≥55
Return Loss (dB) UPC ≥55 APC ≥60
Operating Temperature (°C) -5~ +75
Storage Temperature (°C) -40 ~ +85
Fiber length 1m or custom length
Fiber Type Corning SMF-28e fiber
Connector Type Custom specified
Power Handling (mW)

300
50dB OEM Rack Mount 0.5m Fiber Optic PLC Splitter
