Brand Name : SUNET or OEM
Model Number : Steel Tube Type
Certification : ISO9001
Place of Origin : Qingdao,China
MOQ : 1pcs
Price : USD4-8/Pcs
Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability : 5000000pcs per week
Delivery Time : 5-8 working day
Packaging Details : One pcs in one plastic box/bag
Product Name : PLC splitter
Type : 1x16
Fiber Type : G657A
Application : FTTH FTTB FTTX Network
Material : PVC LSZH optional
Connector Type : SC/APC
Wavelength : 1260 to 1650nm
Cable Diameter : 0.9mm
Cable Length : 1m or customized
Color : 12 colors are available
1x16 Steel Tube PVC G657A 1m SC/APC Fiber Optic Splitter Plc
Fiber Optic PLC Splitter Description
Sunet's Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
1x16 PLC splitter ,uniform distribution of optical signal
Small size,with the splitter type of mini module,SC/APC connector
Ideal for EPON GPON FTTH/FTTX network
Fiber Optic PLC Splitter Features
1. Low Insertion loss and Low PDL
2. Uniform power splitting
3. High reliability
4. Excellent environmental stability
5. Compact size and various package
Fiber Optic PLC Splitter Applications
1. FTTx Systems
2. Digital, hybrid and AM-Video systems
3. LAN,WAN and Metro Networks
4. CATV systems
5. Other applications in fiber
Fiber Optic PLC Splitter Specification
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Fiber Type | G657A / G652D SMF-28e or customer specified | |||||
Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature Stability(-40~85 °C)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Operating Temperature (°C) | -40~85 | |||||
Storage Temperature (°C) | -40~85 | |||||
Packaging Dimension (mm) (L×W×H) |
40×4×4 |
40×4×4 |
40×4×4 |
40×4×4 |
50×7×4 |
60×12×4 |
Notes: 1. Specified without connectors. 2. Add an additional 0.2dB loss per connector
![]() |

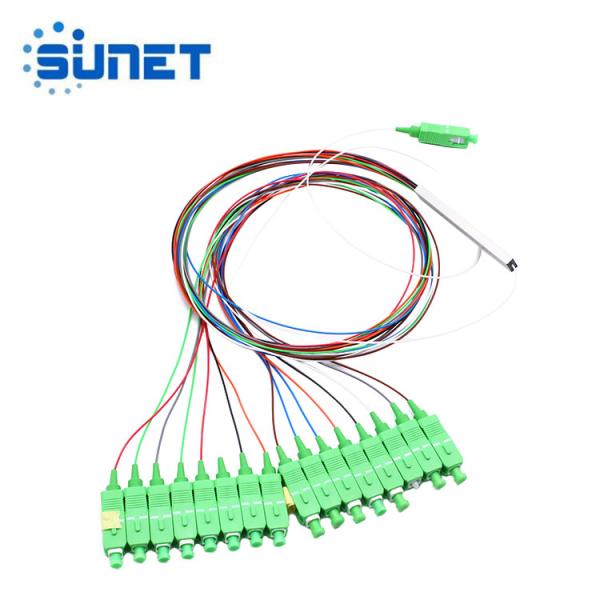

1m ISO9001 PVC Low PDL Fiber Optic PLC Splitter Images |
